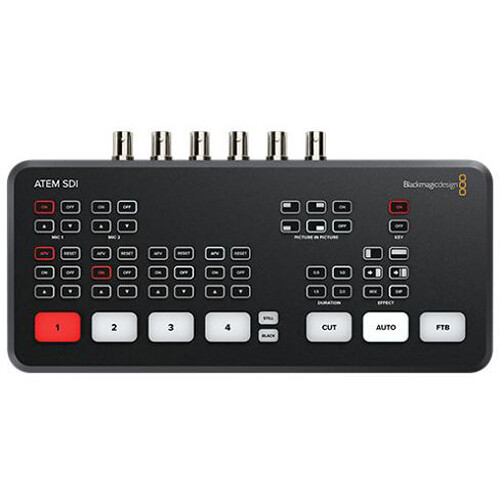

ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. Blackmagic Design ATEM SDI Specs Available M/E Layers 5 M/E Effect Types DVE, Transition, Chroma Key Generators 1 x Pattern 2 x Color Audio Mixing 2-Channel Mixing Processing Switching Type IR Remote, Pushbutton, Software Input Number of Video Input Sources 4 Video Input Connectors 4 x BNC (3G-SDI) Input Video Format SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps Audio Input Connectors 2 x 1/8″ / 3.5 mm TRS Stereo Analog Female Input Audio Format Analog Embedded Audio Input SDI: 2-Channel (per Input) Output Video Output Channels 3 Video Output Connectors 2 x BNC (3G-SDI) (Program) Output Video Format SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps Embedded Audio Output SDI Multiview Output None Connectivity Other I/O 1 x RJ45 Control Input/Output HDCP Support None Hardware OS Compatibility macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: Check with manufacturer for the most up-to-date compatibility Power Connector 1 x Barrel (12 VDC) Input Power Consumption Device: 18 W Environmental Operating Temperature 41 to 104°F / 5 to 40°C Storage Temperature 14 to 140°F / -10 to 60°C Operating Humidity 0 to 90% (Non-Condensing) General Dimensions 9.35 x 4.67 x 1.38″ / 23.75 x 11.86 x 3.51 cm Weight 23.9 oz / 678 g Packaging Info Package Weight 2.23 lb Box Dimensions (LxWxH) 11.2 x 7.9 x 2.6″
